Redefine The Light-Weight
Precast Concrete

AcoLITE wall panel represents a major breakthrough in modern construction and is truly a game changer for the industry. Unlike conventional wall systems, AcoLITE is the only concrete wall panel in Malaysia that delivers exceptional lightweight properties without compromising structural strength and durability.

This unique combination allows for faster installation, easier handling, reduced structural load, and improved overall construction efficiency. By redefining performance standards, AcoLITE provides developers, architects, and contractors with a smarter, more innovative building solution for today’s demanding construction environment.

Elevate Your Build with Smarter, Greener Solutions

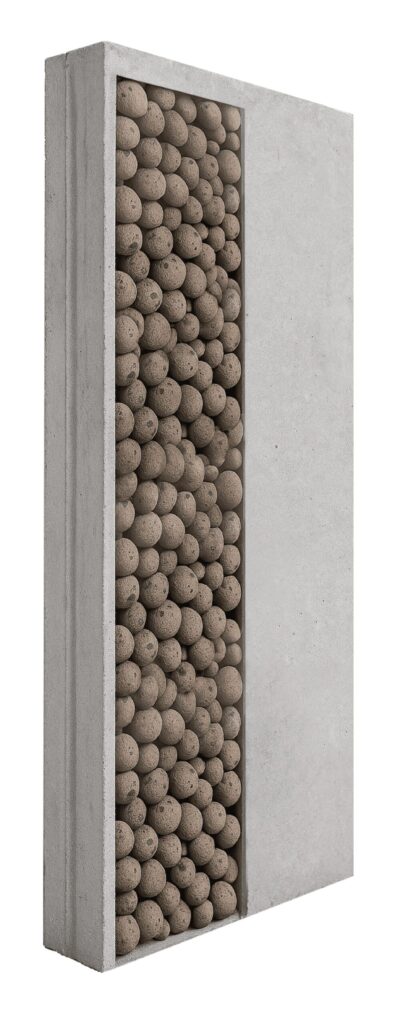

Introducing AcoLITE the next evolution in precast concrete wall panel technology, developed to redefine how modern buildings are designed and constructed. Through the innovative use of AECA® as a replacement for natural aggregates in the concrete mix, AcoLITE offers a smarter and more sustainable solution without sacrificing performance. Purpose-built to meet the growing demands of today’s construction industry, AcoLITE delivers exceptional load-bearing strength, supports rapid and efficient installation, and ensures long-term structural reliability throughout the building’s lifecycle. This advanced wall panel system enhances construction productivity, reduces structural load, minimizes material consumption, and contributes to a more environmentally responsible construction approach setting a new benchmark for next-generation building solutions.

AcoLITE Above Others

AcoLITE wall panels engineered to outperform – offering exceptional strength, easy
handling, and greater cost-efficiency with reduced labor and material costs.

Requirement
AcoLITE (100mm THK)
Formwork (100mm THK)
Weight
105 kg/ m2
240 kg/ m2
Productivity
18 m2 / man-day
8 m2 / man-day
(Subject to site condition)
Green Product
Yes
No
Able to Renovate
Yes
No
Formworks
No
Purchase / Rent
Machinery
No
Yes
Accessories
Inclusive
Need to purchase
(if missing)
Specification
AcoLITE (100mm THK)
Non-Concrete Wall
Cube Test
≥ 19 N/mm²
3.5 N/mm²
Water Absorption
Low
High

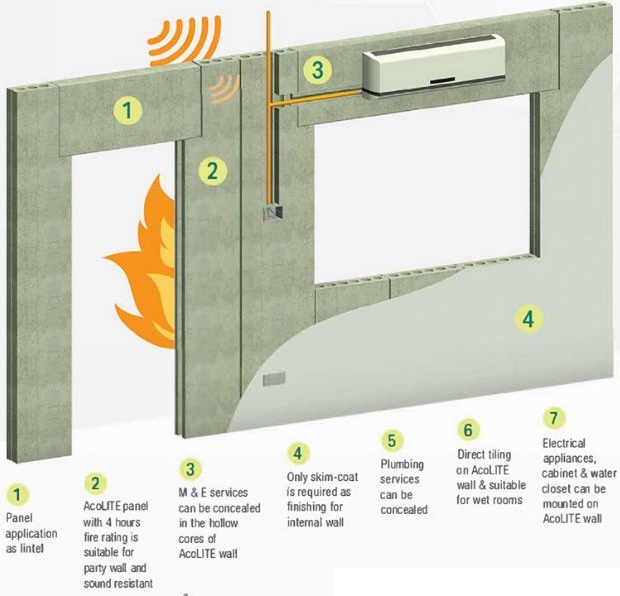

M&E Installation
Services can be run
through wall cell
By surface hacking
Applies Finishes: Tilling
Yes, with adhesive
Need screeding
External finishes
Min 10mm render
+/- 20mm plaster
Low carbon footprint
Yes
No

Superior Strength

Faster Installation

Cost-Effective

Test specifications
AcoLITE Panel
Weight
105 kg/m2

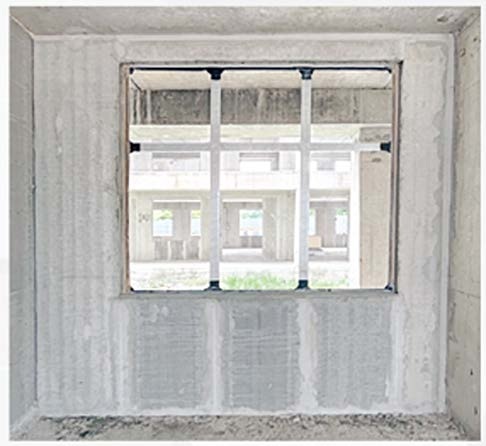

Lintel
AcoLITE
Fire Rating
Hollow : 2 Hours | Solid : 4 Hours
Sound Insulation
47 dB
Compressive Strength
- Cube Test
≥ 19 N/mm²
- Sectional Test
≥ 7 N/mm²
Thermal Resistance
0.1 m2 K/W
Moisture Absorption
≤ 5%

Standard Panel Dimensions

Thickness (T) :75mm / 100mm / 125mm / 150mm
-950     (H)  x 600 (W)

-2440   (H) x 600 (W)
-2740    (H) x 600 (W)
-3000  (H) x 600 (W)
-3300   (H) x 600 (W)

AcoLITE Wall Panels:
Engineered for High-Rise Versatility
